outdoor LED display
It is a lightweight modular design which can be easily set up into different screen sizes. All these panels use black SMDs, making sure a high contrast for indoor applications, like concerts, TC shows, trade shows, broadcast, corporate events etc.

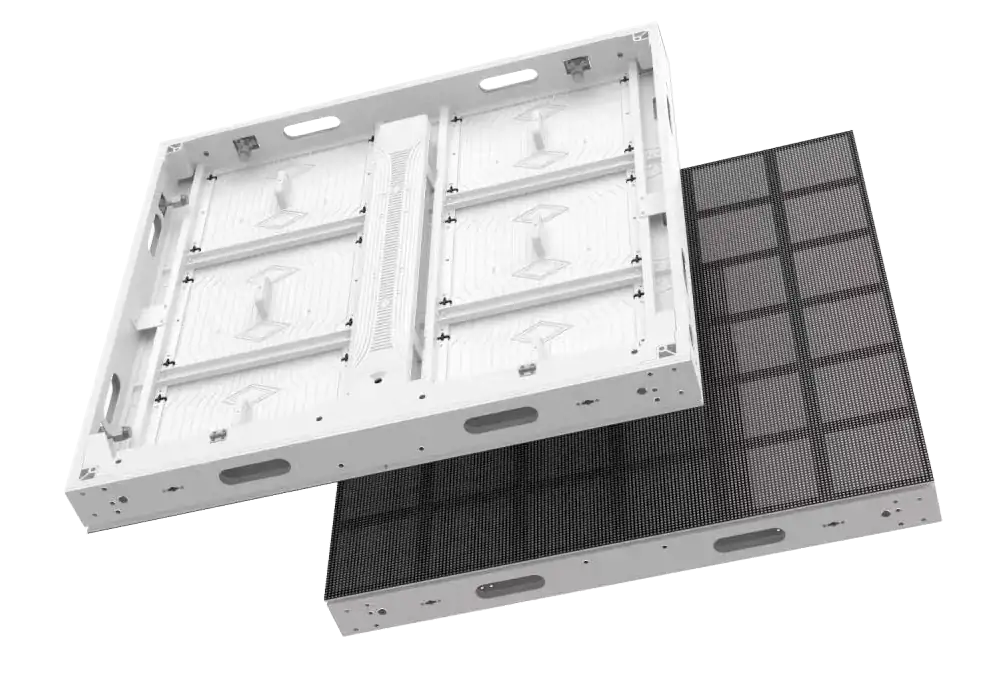

Panel size in 500x500mm, die-cast aluminum cabinet makes it sure for the reliable structure and precise seamless. It is in 8kg/panel and 80mm in depth
Cabinets are with fast locking system, no tools needed for installation. And concave and convex designs are available
All pixel pitches are with the same cabinet, and only with different pixels
Power supply unit are without fans, and there is no extra fan inside the cabinet
Front service, modules, power box can be dismantled from front
Brightness are more than 4500nits, and it is with IP65 front and IP54 rear for outdoor environment
Outdoor Rental LED specification
Model NO.
PBM1.6S
PBM1.6U
PBM1.6L
Pixel configuration
1R1G1B
1R1G1B
1R1G1B
LED type
SMD1415
SMD1921
SMD1921
Module size (mm)
250×250
250×250
250×250
Module resolution
84×84
64×64
52×52
Cabinet resolution
168×168
128×128
104×104
Cabinet size (mm)
500×500
500×500
500×500
Density dots/m2
112,896
65,536
43,264
Brightness (nits)
≥900
≥1000
≥900
Scan method
1/28
1/16
1/13
Weight
8 kg/m2
8 kg/m2
8 kg/m2
Refresh rate (Hz)
≥3840
≥3840
≥3840
Cabinet material
Cabinet material
Maintenance
Rear and front
Protection level
IP65 front, IP54 rear
