PixelBrick

Creative staging LED display

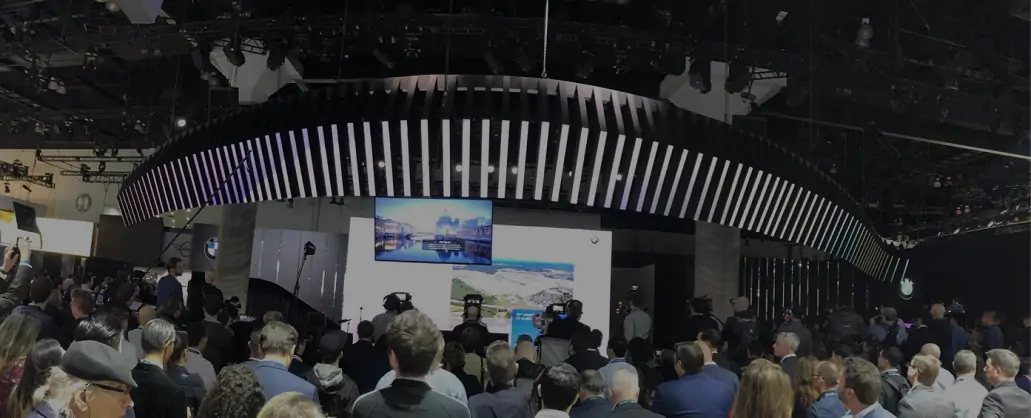

Want some creative and innovation staging designs? PixelBrick is an option.

PixelBrick is a creative LED strip in small panel size with power and controller built inside. It is flexible to make varies shape like rhombic, square, long strip etc, meeting different special applications. It can also be installed with regular flat LED screens.

Product Description

Lightweight and different size options.

There are 600x100mm and 900x100mm to be chosen.
Only 2.1kg for 600x100mm panel and 2.9kg for 900x100mm panel.

Easy installation.

Panels can be connected with fast locking system.

Heat dissipation

Fluted design of the power box to optimize heat dissipation especially for outdoor type, and make it in better looking.

Mask design

Special design of the mask to protect the LEDs and does not affect the viewing angle.

Brompton control processor.

Brompton control system can match special LED screen installation to meet creative designs on staging.

Parameter

Item	Parameter
Model No.	PixelBrick PB3	PixelBrick PB6	PixelBrick PB6L
Pixel pitch	3.125mm	6.25mm	6.25mm
Pixel configuration	1R1G1B
LED type	SMD2020 black	SMD2727	SMD2727
Density	102,400 dots/m2	25,600 dots/m2	25,600 dots/m2
Module size	300x100mm	300x100mm	450x100mm
Module resolution	96x32	48x16	72x16
Panel size	600x100mm	600x100mm	900x100mm
Panel resolution	192x32	96x16	144x16
Scan method	1/16 scan	1/4 scan	1/13 scan
Brightness	≥1,200 nits	≥5,500 nits	≥5,500 nits
Weight	2.1 kg/panel	2.1 kg/panel	2.8kg/panel
Max power consumption	50W/PCS	50W/PCS	70W/PCS
Ave power consumption	20W/PCS	20W/PCS	25W/PCS
Color depth	16 bits	16 bits	16 bits
Refresh rate	≥3,840 Hz	≥3,840 Hz	≥3,840 Hz
Protection level	Indoor use	IP65	IP65
