PixelRobot

Kinetic 3D LED screen

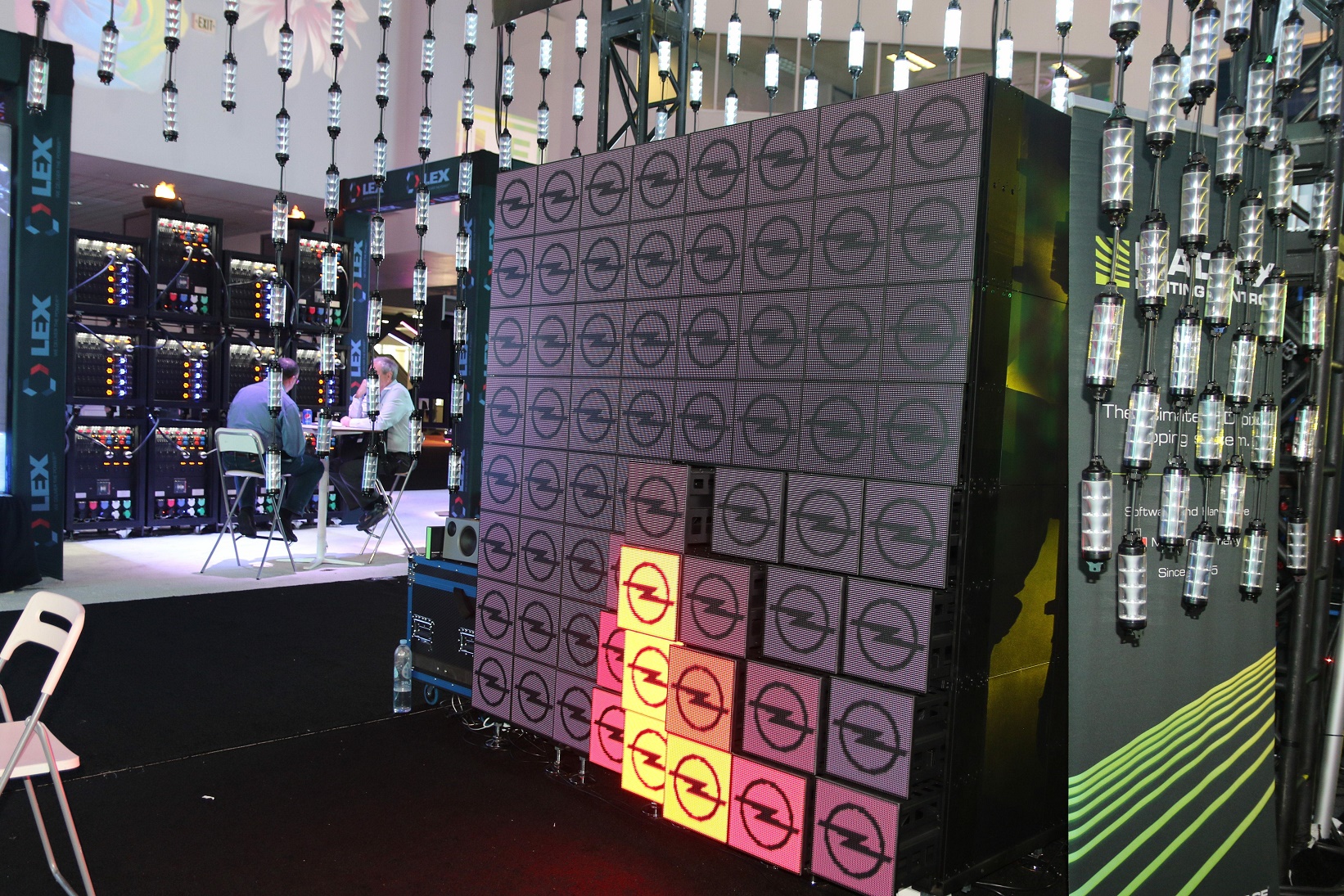

PixelRobot is a kinetic LED display which modules can be moved in and out to create 3D effects. The movement, video and music can match together to show excellent showing effects. Panel size in 500x500mm, screen size can be built based on this basic unit.

Module moving speed can be controlled independently. And the longest forward is 400mm.

Product Description

Modular system

Panel size is in 500x500mm, it is the same as regular LED display, each basic unit can be built into bigger screen according to project information.

Easy setup, simple cabling

There are 2 signal cables, 1 power cable. The cabling system is simple and can be used for rental application as well as fixed installation.

Real 3D effects

Each panel is with 2x2 kinetic LED modules to create 3D LED effects. The movement, video and music can match together to show excellent showing effects.

Parameter

Item	Parameter
Model NO.	PixelRobot PR3.91	PixelRobot PR4.81
Pixel pitch	3.91mm	4.81mm
Pixel configuration	1R1G1B	1R1G1B
LED type	SMD1415 black	SMD2020 black
Module size	250x250mm	250x250mm
Module resolution	64x64	52x52
Cabinet resolution	128x128	104x104
Cabinet size	500*500mm	500*500mm
Cabinet depth	828mm	828mm
LED module movement distance (max)	400mm	400mm
Density	65,536 dots/㎡	43,264 dots/㎡
Brightness	≥1,200 NIT	≥1,000 NIT
Scan method	1/16	1/13
Best view distance	≥4m	≥5m
Max. power consumption	400 W / cabinet	400 W / cabinet
Ave. power consumption	160 W / cabinet	160 W / cabinet
Weight	68 KG
Grey scale	65,536
Colors	281 trillion
Refresh rate	≥3,840 Hz
Protection level	IP31, indoor
