PixelTotem

PixelTotem is a slim poster type LED display. It can be used as digital poster at fashion shops, restaurants, coffee shops, trade shows, shopping malls etc.

Product Description

Ultra-slim and lightweight

It is super slim and light weight in 33mm depth and 30kg/panel.

Real plug and play system

Power supply units, receivers and sending card are built inside. Plugging and the screen will run, it is easy to use.

Different installation methods

It can be stacking, wall mounted and hanging installation, meeting varies requirements and demands.

WIFI connection, APP controller available

It is with asynchronous system, extra controller is no needed for this product. WIFI connection via APP, USB, 4G model are ready.

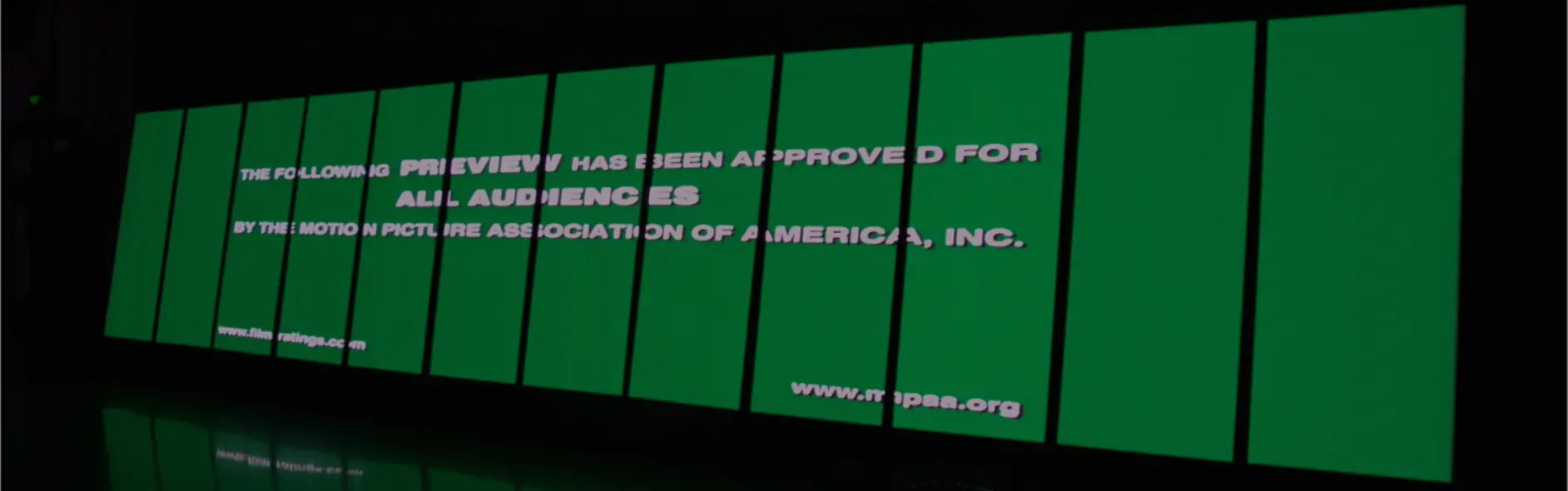

Many panels can be connected into a big screen

Panels can be display different contents or connect into a big screen to show a big video or picture.

Parameter

Item	Parameter
Model NO.	P1.86	P2	P2.5
Pixel pitch	1.86mm	2mm	2.5mm
Pixel configuration	1R1G1B	1R1G1B	1R1G1B
LED type	SMD1515 Black	SMD1515 Black	SMD2020 Black
Module size	320mm x 160mm	320mm x 160mm	320mm x 160mm
Module resolution	172x86	160x80	128x64
Panel resolution	344x1032	320x960	256x756
Cabinet size (overall)	660mm x 1940mm x 50mm	660mm x 1940mm x 50mm	660mm x 1940mm x 50mm
Density	288,906 dots/㎡	250,000 dots/㎡	160,000 dots/㎡
Brightness	≥700 NIT	≥800 NIT	≥900 NIT
Scan method	1/43 scan	1/40 scan	1/32 scan
Best view distance	≥1.8m	≥2m	≥2.5m
Max. power consumption	480W / panel	480W / panel	480W / panel
Ave. power consumption	150 W / panel	150 W / panel	150 W / panel
Weight	40.0 KG
Color depth	14 bit
Colors	4.398 trillion
Refresh rate	≥3,840Hz
Protection level	IP31, indoor use
