PixelBar Mini

PixelBar Mini Shelf LED Bar

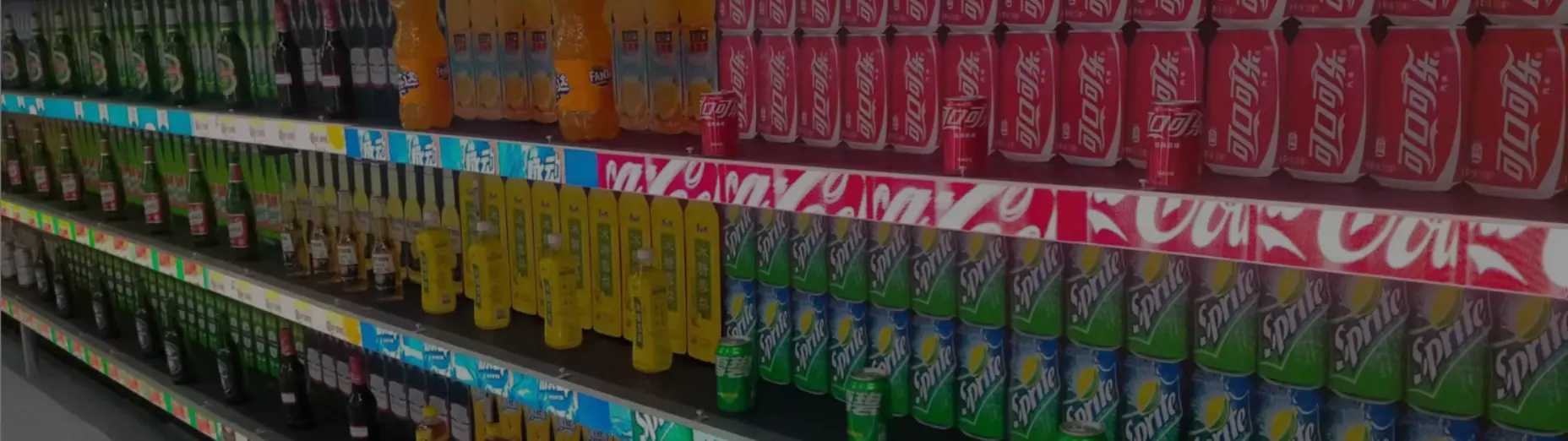

PixelBar Mini is a unique LED video bar with fine pitches P1.25 and P1.8. It is designed to use on shelves at supermarkets, exclusive shops, retail stores etc to show prices, brands, promotion information. With videos and images showing, products will be more attractive.

Product Description

Fine pitch allows clear images and videos

Pixel pitch in 1.25mm and 1.8mm, fine pixel to display clear and attractive contents.

Slim and lightweight

PixelBar Mini is slim and lightweight, 23mm in depth, 931x60mm LED bar in 1.2kg.

Dust and liquid proof

There is a PC cover in front to protect LEDs from liquid, external force damage.

Standalone, plug and play system

Asynchronous control system, WIFI connection, USB and 4G mode are available.

Easy installation

Two buttons will be included in the shipment for the installation. And they are with M3 screws. Then the PixelBar Mini can be locked to the shelves with these buttons.

Parameter

Item	Parameter
Model NO.	PBM1.6S	PBM1.6	PBM1.6M	PBM1.6U	PBM1.6L
LED Type	1.66mm
Pixel configuration	1R1G1B
LED type	SMD1010 Black
Module size	133mm x53.2mm
Module resolution	80x32
Panel resolution	240x32	400x32	560x32	720x32	800x32
Cabinet size	400 x 60mm	665x60mm	931x60mm	1197x60mm	1330x60mm
Density	361,806 dots/㎡
Brightness	≥700 NIT
Max. power consumption	15W / PC	25W / PC	35W / PC	45W / PC	50W / PC
Ave. power consumption	6 W / PC	10 W / PC	14W / PC	18W / PC	20W / PC
Weight	0.5KG	0.9KG	1.2KG	1.5KG	1.7KG
Color depth	14 bit
Colors	4.398 trillion
Refresh rate	≥2,520Hz
View angle	Horizontal: 120°, Vertical: 120°
Protection level	IP31, indoor use
