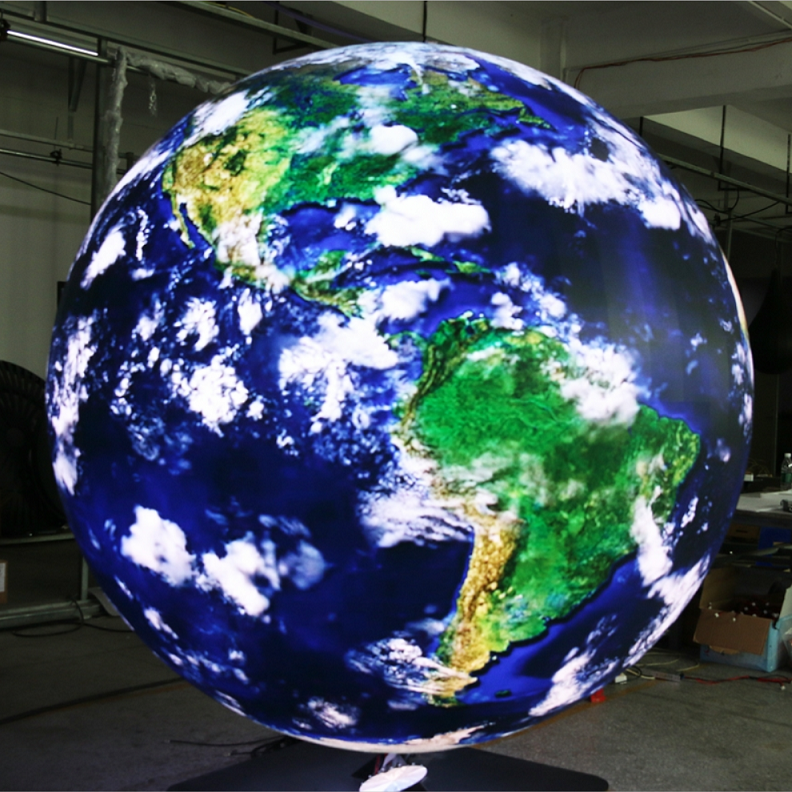

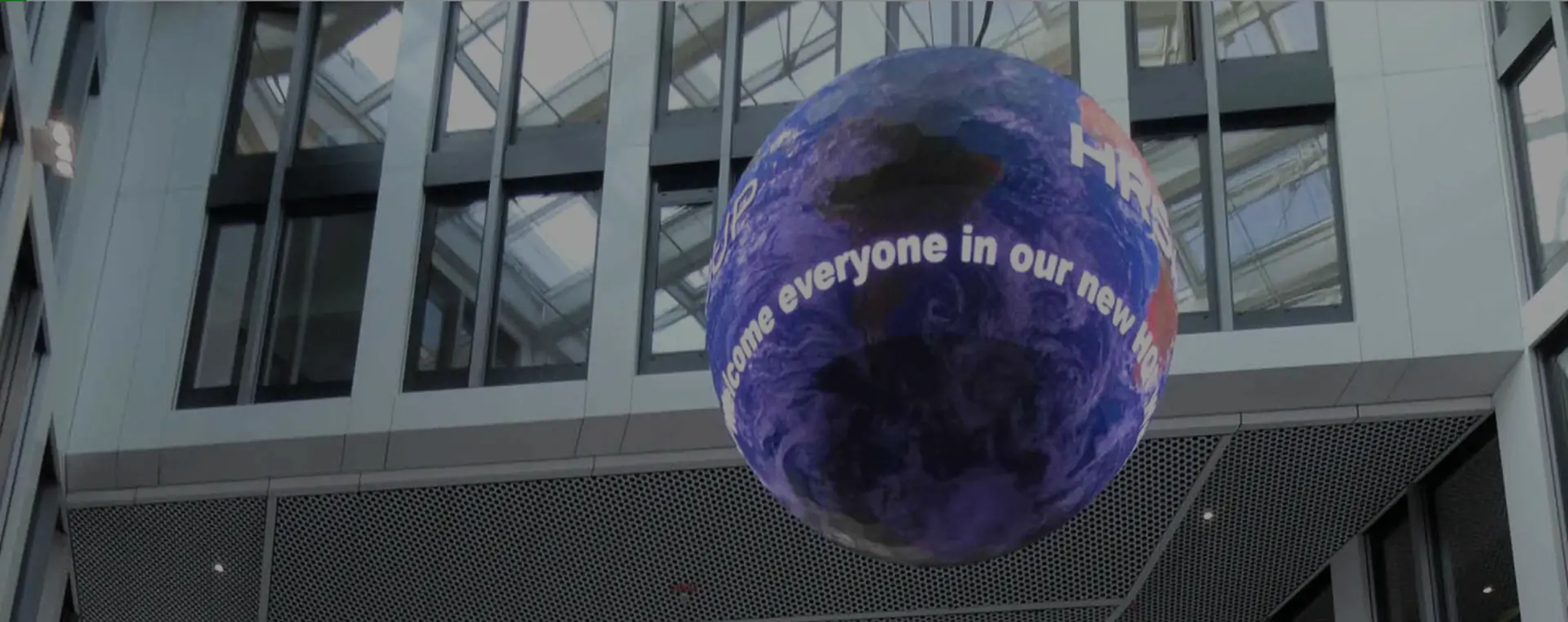

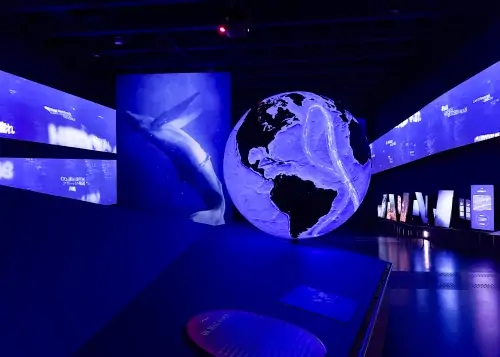

PixelSphere is a LED screen in sphere for 360 degree viewing angle. Different pixel pitches and diameters can be available to meet demands and requirements. It can be used for rental application and fixed installation for indoor and outdoor environment.
| Item | Parameter | |||
|---|---|---|---|---|
| Model No. | P2 | P2.5 | P3 | P4 |
| Pixel configuration | 1R1G1B | |||
| LED type | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Density | 1,766,250 | 3,140,000 | 3,139,998 | 3,140,000 |
| Module size（mm） | different types | |||
| Diameter | 1.5m | 2.5m | 3m | 4m |
| Surface area if sphere | 7.065m2 | 19.625m2 | 28.26m2 | 50.24m2 |
| Brightness（nits） | ≥800 | ≥800 | ≥1000 | ≥900 |
| Max. power consumption | 390 W / m2 | 390 W / m2 | 390 W / m2 | 390 W / m2 |
| Ave. power consumption | 150 W / m2 | 150 W / m2 | 150 W / m2 | 150 W / m2 |
| Refresh rate（Hz） | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Weight（kg/m²） | 45 kg | |||
| Cabinet material | steel | |||
| Protection level | IP31 | |||
| Maintenance | Front | |||
