Indoor Flexible LED

Indoor Flexible LED Display

Not satisfied with flat LED screens?

Flexible LED display will enlarge the installation possibilities, concave and convex installations are available.

Product Description

Many pixel pitches to be chosen.

Pixel pitches are 1.25mm, 1.579mm, 1.667mm, 1.875mm, 2mm, 2.5mm, 3mm, 4mm. Black LEDs with high contrast.

Soft rubber housing.

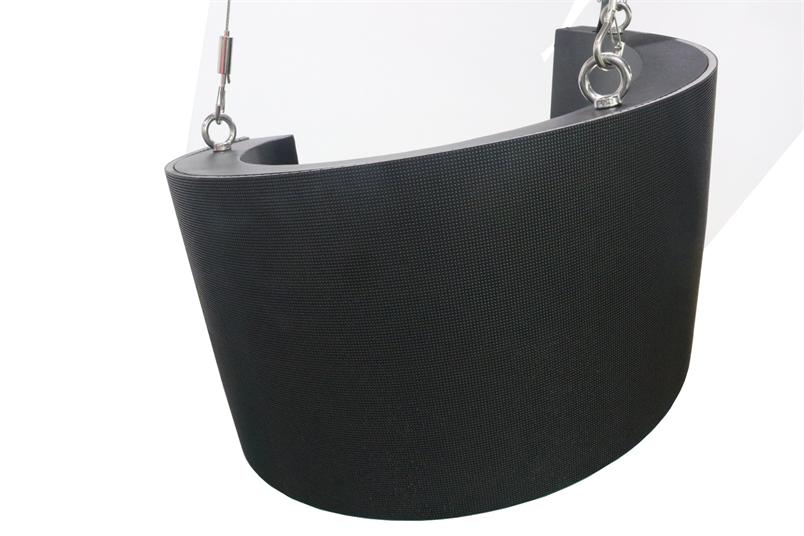

It makes possible to build curved screen without gaps on both convex and concave.

Front service.

All parts including modules, PSU, receivers can be dismantled from front. And 14magnets on modules make it strong to stick on the cabinet with smooth surface and perfect visuals.

Same modules size 320x160mm

Module size is in 320x160mm, diameter of the smallest cylinder is 0.5m. Any curve can be customized according to specific request.

Parameter

Item	Parameter
Model No.	P1.25	P1.538	P1.86	P2	P2.5	P2.6	P3.076	P4
Pixel configuration	1R1G1B
LED type	SMD1010	SMD1212	SMD1515	SMD1515	SMD1515	SMD1515	SMD2020	SMD2020
Density（dots/m²）	640,000	422,500	288,906	250,000	160,000	147,456	105,625	62,500
Tail size（mm）	320x160x8.6（L x H x D）
Tail resolution	256x128	208x104	172x86	160x80	160x80	128x64	78x39	80x40
Scan method	1/64	1/52	1/43	1/40	1/32	1/32	1/26	1/20
Refresh rate（Hz）	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840
Frame frequency（Hz）	50&60
Color depth（bit）	12-16 adjustable
Tail housing material	Silica gel
Tail weight（kg/pcs）	0.215	0.203	0.195	0.216	0.205	0.175	0.175	0.170
Screen size	Customized, 6 tails can make a smallest cylinder in diameter 0.459m
Cabinet material	Iron
Protection level	IP45
Maintenance	Rear and front
Brightness（nits）	≥650	≥700	≥700	≥700	≥800	≥800	≥800	≥800
