Outdoor Flexible LED

Outdoor Flexible LED Display

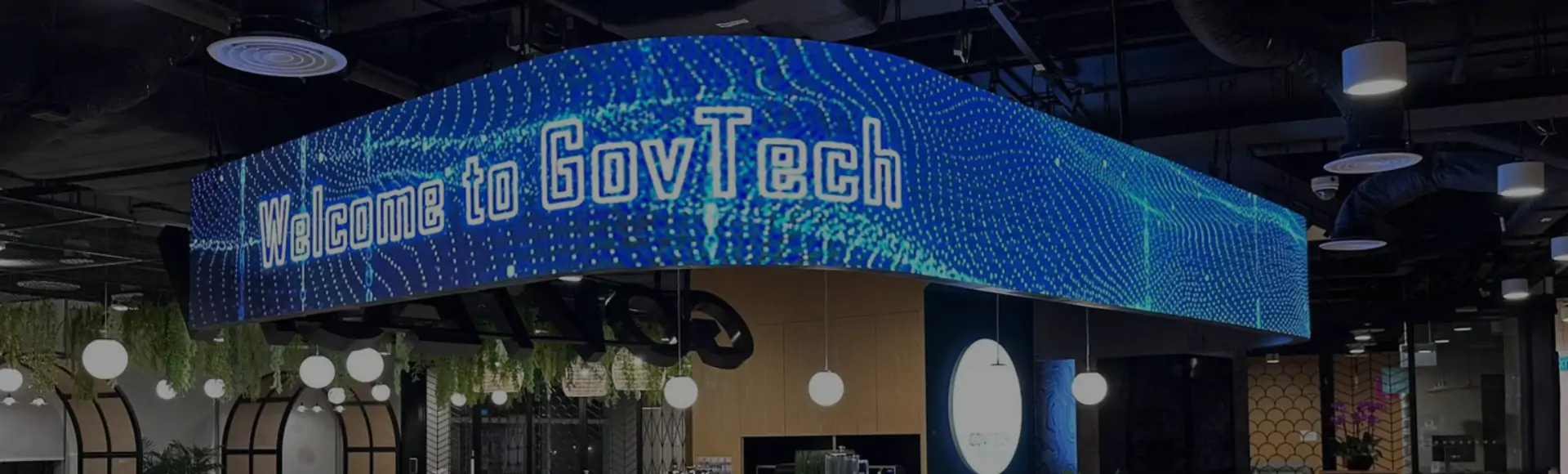

Not satisfied with flat LED screens? Flexible LED display will enlarge the installation possibility, concave and convex installations are available. And IP68 protection level and high brightness makes possible to be installed in outdoor environment.

Product Description

Many pixel pitches to be chosen.

Pixel pitches are 2.5mm, 3.8mm, 6.67mm, 8mm, 10mm.

Soft rubber housing.

It makes possible to build curved screen without gaps between modules, both in convex and concave.

Front service.

All parts including modules, PSU, receivers can be dismantled from front. And magnets on modules make it strong to stick on the cabinet with smooth surface.

Flexible Module Housing

Module size is in 304.8x304.8mm and 320x320mm. Any curve can be customized according to specific request.

Parameter

Item	Parameter
Model No.	P2.5	P3.8	P6.67	P8	P10
Pixel configuration	1R1G1B
LED type	SMD1415	SMD1921	SMD2727	SMD2727	SMD3535
Density（dots/m²）	155,000	68,889	22,500	15,625	10,000
Tail size（mm）	304.8x304.8mm	304.8x304.8mm	320x320mm	320x320mm	320x320mm
Tail resolution	120x120	80x80	48x48	40x40	32x32
Scan method	1/15	1/10	1/6	1/4	1/2
Refresh rate（Hz）	≥3840	≥3840	≥3840	≥3840	≥3840
Brightness(nits)	≥5,500	≥5,500	≥6,000	≥6,000	≥7,000
Max power consumption	800W/sqm	800W/sqm	800W/sqm	800W/sqm	800W/sqm
Ave power consumption	250W/sqm	250W/sqm	250W/sqm	250W/sqm	250W/sqm
Frame frequency（Hz）	50&60
Color depth（bit）	12-16 adjustable
Screen size	Customized
Cabinet material	Iron
Protection level	IP68
Maintenance	Rear and front
