Indoor Rental 500x500mm

Indoor Rental LED Panel 500x500mm

Indoor rental LED panel 500x500mm is a popular solution available in several pixel pitches.

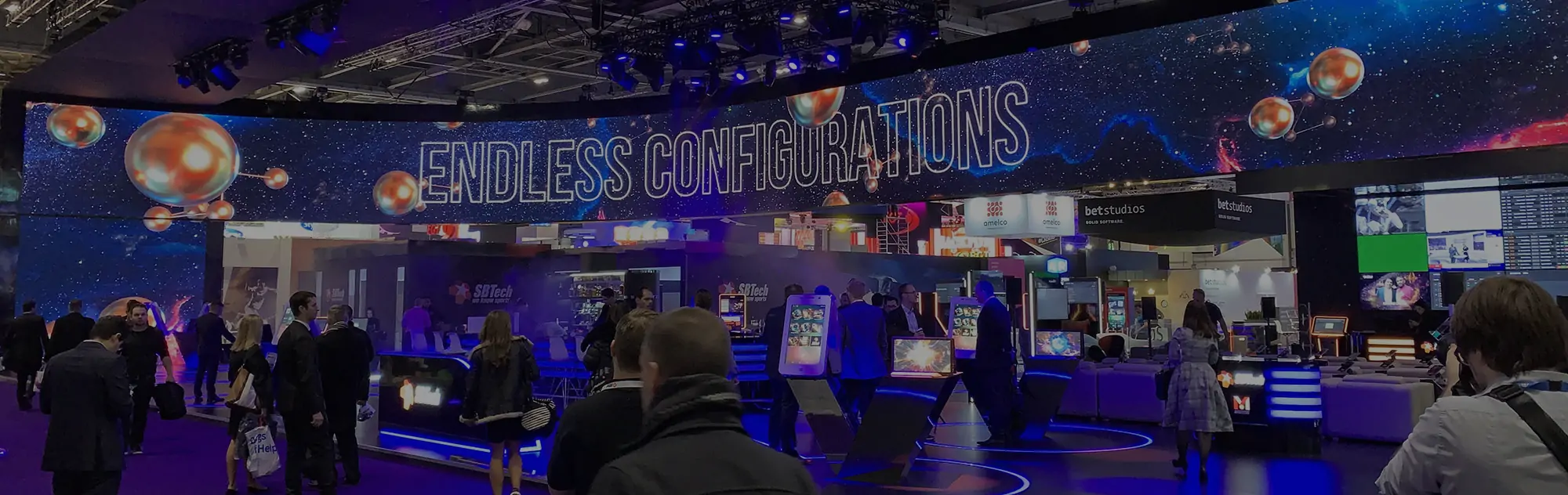

It is a lightweight modular design which can be easily setup into different screen sizes. All these panels are with black SMD LEDs, making sure a high contrast for indoor applications, like concerts, TC shows, trade shows, broadcast, corporate events etc.

Product Description

Slim, lightweight and strong structure

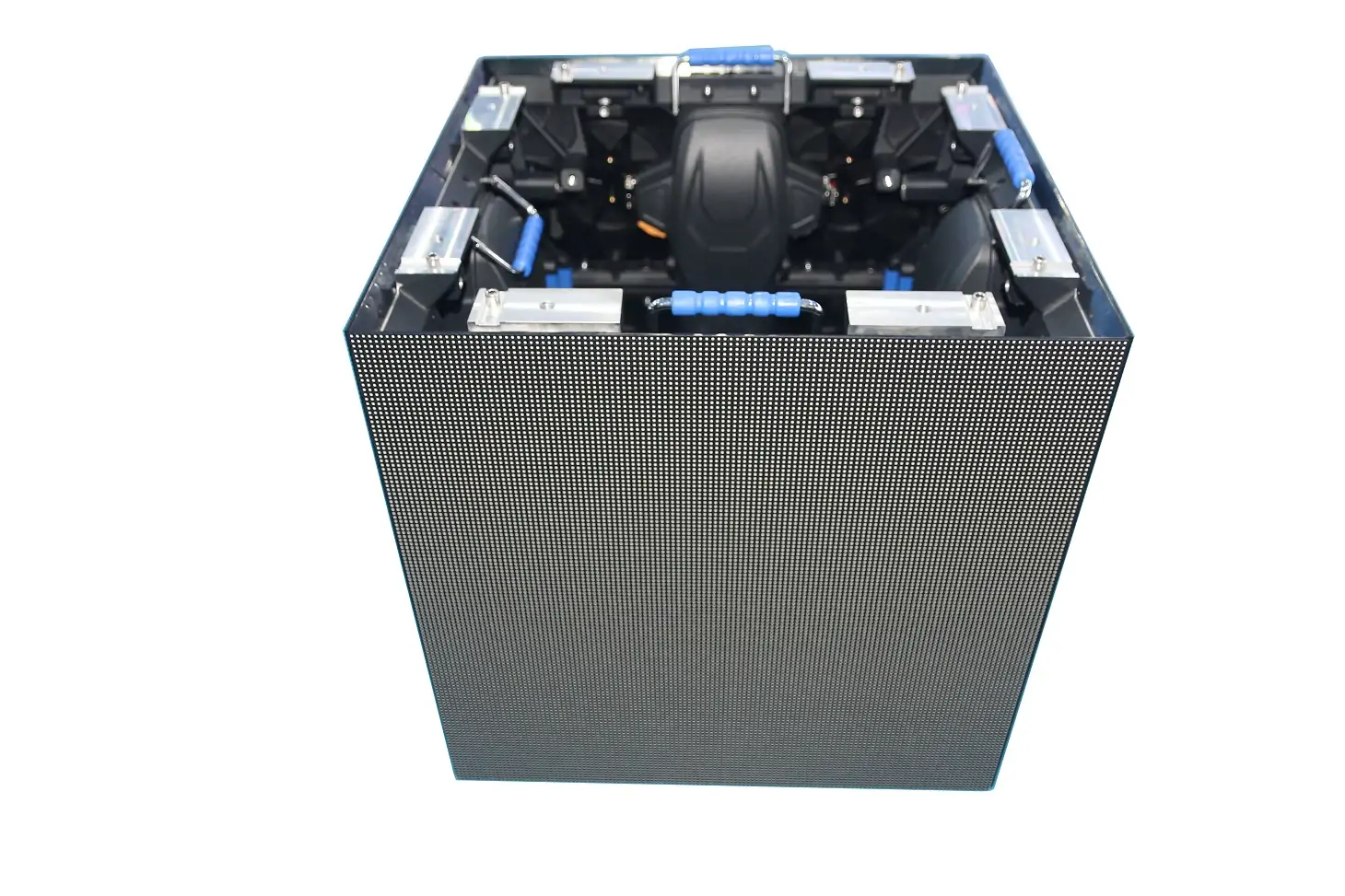

Panel size in 500x500mm, die-cast aluminum cabinet makes it sure for the reliable structure and precise seamless. It is in 8kg/panel and 80mm in depth.

Fast locking system

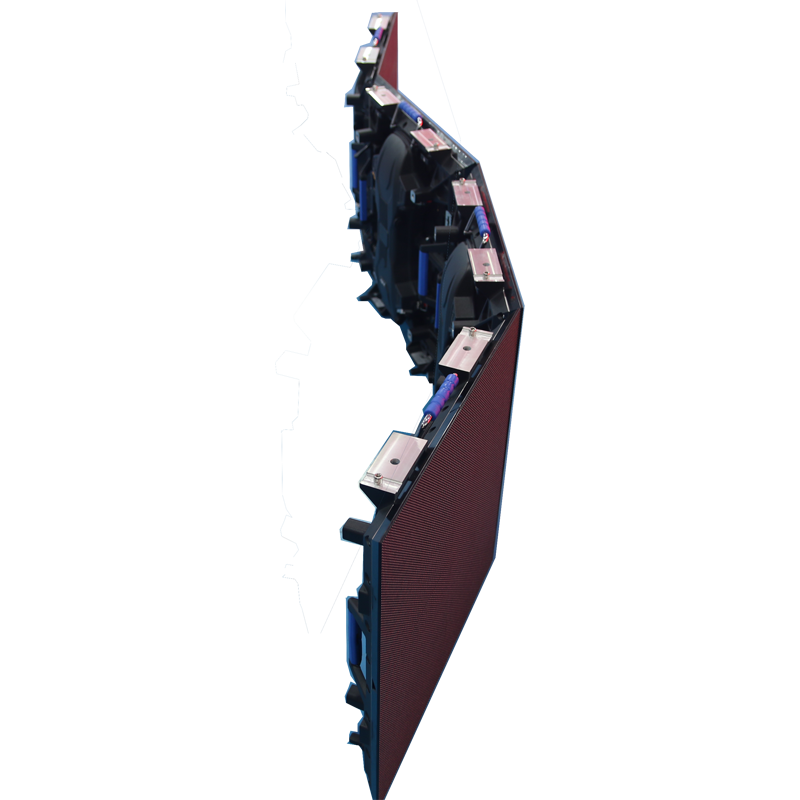

Cabinets are with fast locking system, no tools needed for installation. And curved locks make it possible to be concave and convex designs. It can also be built screens in right angles, allowing more possibilities on designs.

Sharing the same mechanical frame

Different pixel pitches are with the same cabinet, and only with different pixels.

High contrast and high refresh rate 3840Hz

Easy maintenance

Front service, magnetic modules, power box can be dismantled from front and back.

Protection

There are protection are corners to provent the LEDs from damage, especially for fine pixel pitches.

Parameter

Item	Parameter
Model No.	P2.6	P2.9	P3.9	P3.9
Pixel configuration	1R1G1B
LED type	SMD1515	SMD2020	SMD2020	SMD2020
Density（dots/m²）	147,456	112,896	65,536	43,264
Module size（mm）	250x250
Module resolution	96x96	84x84	64x64	52x52
Cabinet size（mm）	500x500	500x500	500x500	500x500
Cabinet resolution	192x192	168x168	128x128	104x104
Scan method	1/32	1/28	1/16	1/13
Brightness（nits）	≥800	≥900	≥1000	≥900
Refresh rate（Hz）	≥3840	≥3840	≥3840	≥3840
Weight（kg/m²）	8 kg/panel
Cabinet material	Die-cast aluminum
Protection level	IP43
Maintenance	Rear and front
