Indoor Fixed 500x1000mm

Indoor Fixed LED in 500x1000mm

High resolution LED screen is with die-cast aluminum panel, it is suitable for wall mounted installation, especially for those space limited on the back side, no matter it is in small or big screen.

It can be used at meeting rooms, hotel hobbies, cinemas, churches and so on. Panels in stock can be taken into consideration to save time and shipping cost.

Product Description

Fine pixel pitches

Pixel pitches available with 1.9mm, 2.6mm, 2.9mm, 3.91mm. Different pitches and panel size will be provided according to project requirements and budget.

Die-cast aluminum cabinet and lightweight

Precise die-cast aluminum cabinet makes sure the good flatness and seamless between cabinets, super lightweight and slim, 5.9kg/panel and 58mm depth of panel 500x500mm.

Different cabinet sizes

Different cabinet sizes in 500x500mm, 500x1000mm and 500x750mm, they can be catch for vary screen size demands and lower down the cost in some cases.

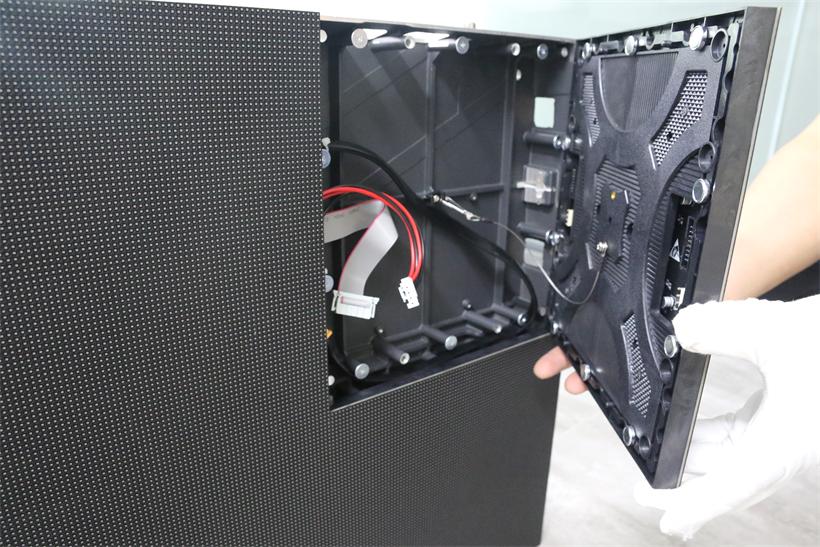

Full front service

Full front maintenance is suitable for wall mounted installation, space is not needed for rear. All parts including modules, PSU, receivers are able to be dismantled from front.

Parameter

Item	Parameter
Model NO.	P1.95	P2.6	P2.9	P3.91
Pixel pitch	1.95mm	2.6mm	2.9mm	3.91mm
Pixel configuration	1R1G1B
LED type	SMD1515 Black	SMD2020 Black	SMD2020 Black	SMD2020 Black
Module size	250x250mm	250x250mm	250x250mm	250x250mm
Module resolution	130x130	96x96	86x86	64x64
Panel resolution	260x260	192x192	172x172	128x128
Cabinet size (overall)	500 x 500mm	500 x 500mm	500 x 500mm	500 x 500mm
Density	270,400 dots/㎡	147,456dots/㎡	118,336dots/㎡	65,536/㎡
Brightness	≥800 NIT	800NIT	900NIT	1000NIT
Scan method	1/32 scan	1/32 scan	1/16 scan	1/16 scan
Best view distance	≥2m	≥2.5m	≥3m	≥4m
Max. power consumption	530W / ㎡	460W / ㎡	480W / ㎡	420W / ㎡
Ave. power consumption	160 W / ㎡	140 W / ㎡	145 W / ㎡	130 W / ㎡
Weight per m2	25.0 KG/㎡
Color depth	14 bit
Colors	281 trillion
Refresh rate	≥3,840Hz
Protection level	IP31, indoor use
