Indoor Fixed 640x480mm

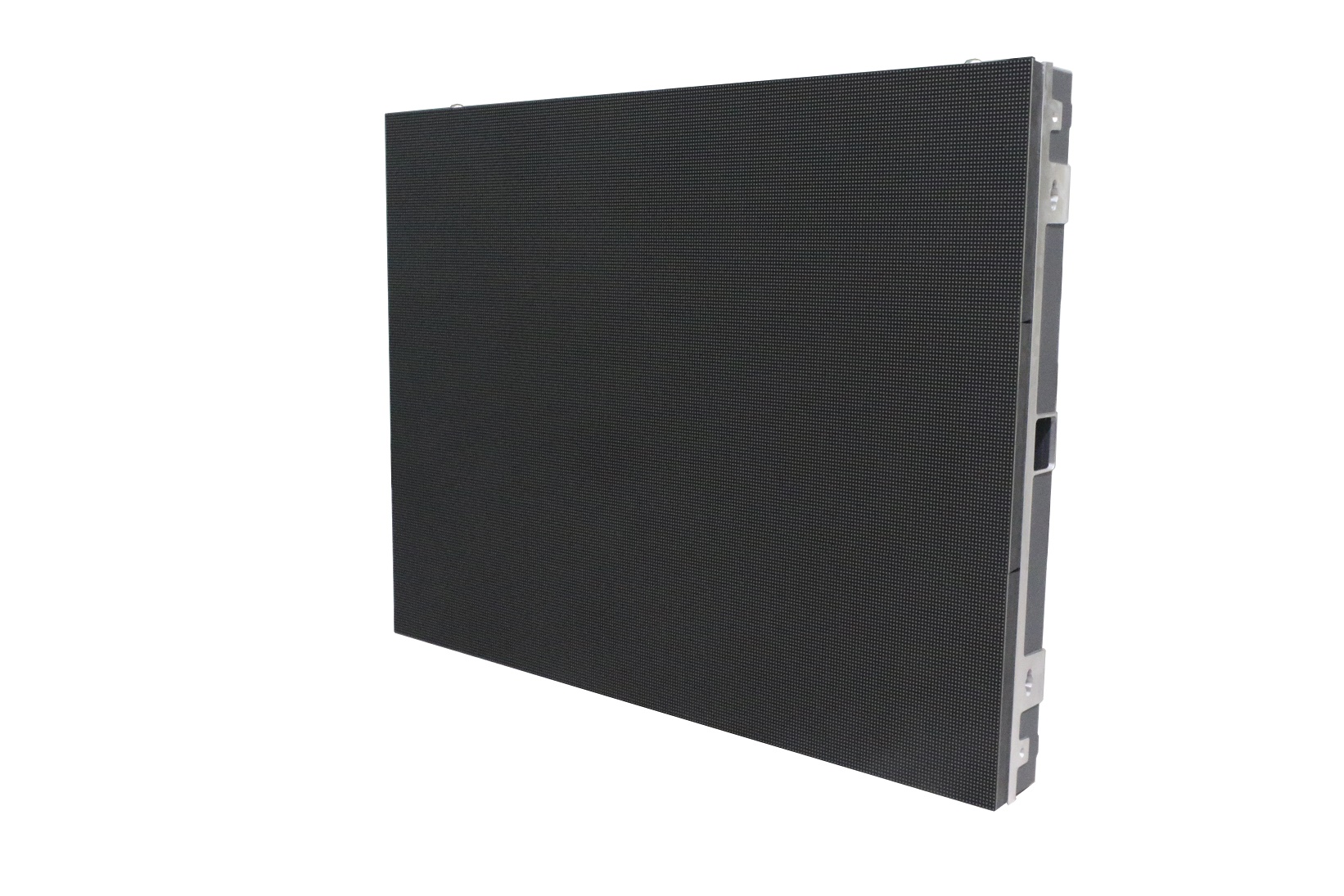

Fine Pitch LED in 640x480mm

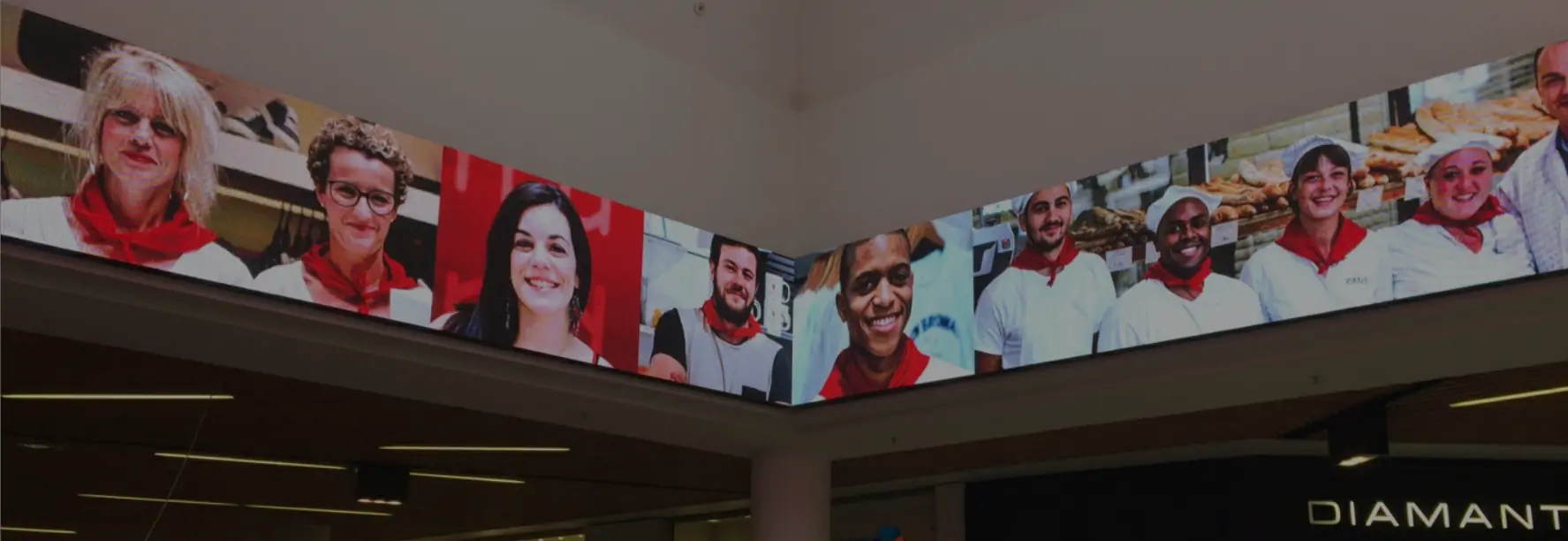

Fine pitch LED is with die-cast fixed mounted panel, it is suitable for wall mounted installation, especially for those space limited on the back side, no matter it is in small or big screen. It can be used at meeting rooms, hotel hobbies, cinemas, churches and so on. Panels in stock can be taken into consideration to save time and shipping cost.

Product Description

Fine pixel pitches

Pixel pitches available with 1.25mm, 1.53mm, 1.66mm, 1.86mm, 2mm, 2.5mm, 3.076mm and 4mm. Different pitches and panel size will be provided according to project requirements and budget.

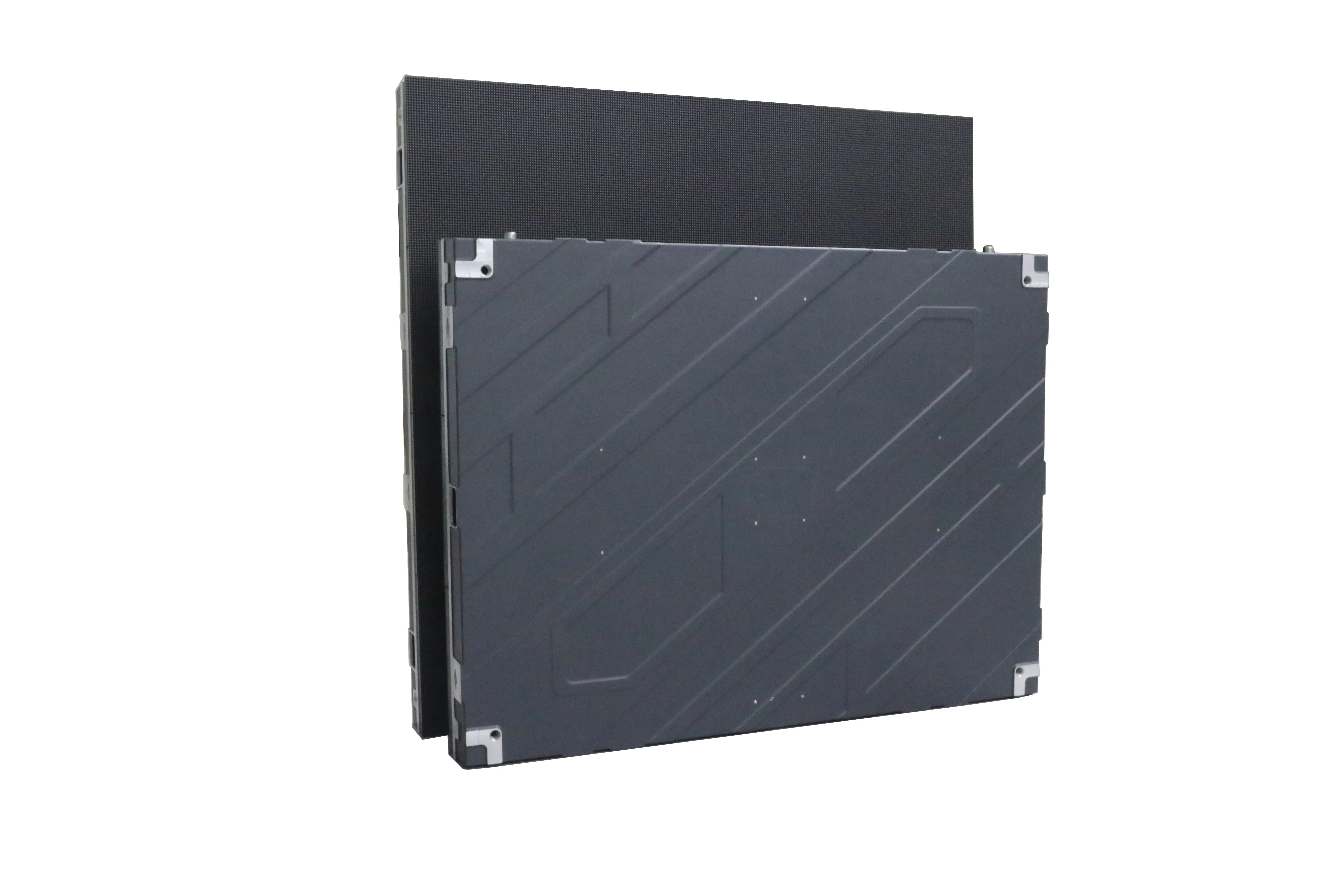

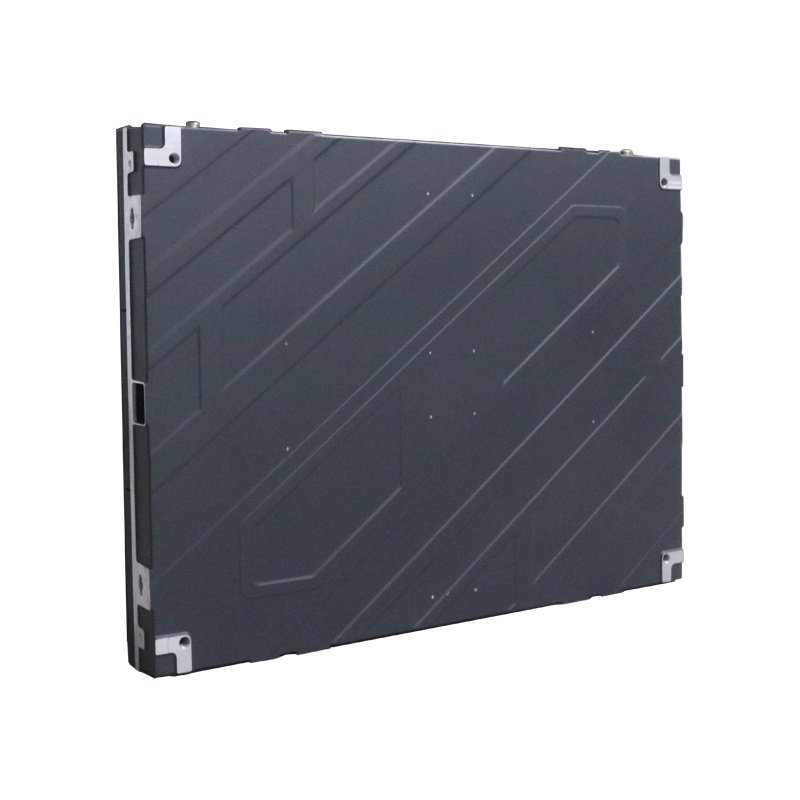

Die-cast aluminum cabinet and lightweight

Precise die-cast aluminum cabinet makes sure the good flatness and seamless between cabinets, super lightweight and slim, 6.8kg/panel and 58mm depth of panel 640x480mm.

Different cabinet sizes

Different cabinet sizes in 640x480mm, 640x640mm and 960x480mm etc, they can be catch for vary screen sizes demands and lower down the cost in some cases.

Full front service

Full front maintenance is suitable for wall mounted installation, space is not needed for rear. All parts including modules, PSU, receivers are able to be dismantled from front.

Parameter

Item	Parameter
Model NO.	P1.25	P1.53	P1.66	P1.86
Pixel pitch	1.25mm	1.25mm	1.66mm	1.86mm
Pixel configuration	1R1G1B
LED type	SMD1010 Black	SMD1515 Black	SMD1515 Black	SMD1515 Black
Module size	320x160mm	320x160mm	320x160mm	320x160mm
Module resolution	256x128	208x104	192x96	172x86
Panel resolution	512x384	416x312	384x288	344x258
Cabinet size (overall)	640 x 480mm	640 x 480mm	640 x 480mm	640 x 480mm
Density	640,000 dots/㎡	422,500 dots/㎡	360,000 dots/㎡	289,444 dots/㎡
Brightness	≥500 NIT	≥500 NIT	≥500 NIT	≥600NIT
Scan method	1/64 scan	1/52 scan	1/48 scan	1/43 scan
Best view distance	≥1.5m	≥1.5m	≥2m	≥2m
Max. power consumption	530W / ㎡	460W / ㎡	480W / ㎡	420W / ㎡
Ave. power consumption	160 W / ㎡	140 W / ㎡	145 W / ㎡	130 W / ㎡
Weight per m2	25.0 KG/㎡
Color depth	14 bit
Colors	281 trillion
Refresh rate	≥3,840Hz
Protection level	IP31, indoor use

Item	Parameter
Model NO.	P2	P2.5	P3	P4
Pixel pitch	2mm	2.5mm	3.076mm	4mm
Pixel configuration	1R1G1B
LED type	SMD1515 Black	SMD2020 Black	SMD2020 Black	SMD2020 Black
Module size	320x160mm	320x160mm	320x160mm	320x160mm
Module resolution	160x80	128x64	104x52	80x40
Panel resolution	320x240	256x192	208x156	160x120
Cabinet size (overall)	640 x 480mm	640 x 480mm	640 x 480mm	640 x 480mm
Density	250,000 dots/㎡	160,000 dots/㎡	105,625 dots/㎡	62,500 dots/㎡
Brightness	≥700 NIT	≥800NIT	≥900NIT	≥700NIT
Scan method	1/40 scan	1/32 scan	1/26 scan	1/20 scan
Best view distance	≥2m	≥2.5m	≥3m	≥4m
Max. power consumption	390W / ㎡	390W / ㎡	380W / ㎡	390W / ㎡
Ave. power consumption	120 W / ㎡	120 W / ㎡	115 W / ㎡	120 W / ㎡
Weight per m2	25.0 KG/㎡
Color depth	14 bit
Colors	281 trillion
Refresh rate	≥3,840Hz
Protection level	IP31, indoor use
