Outdoor Fixed 960x960mm

Outdoor Front Service LED Display

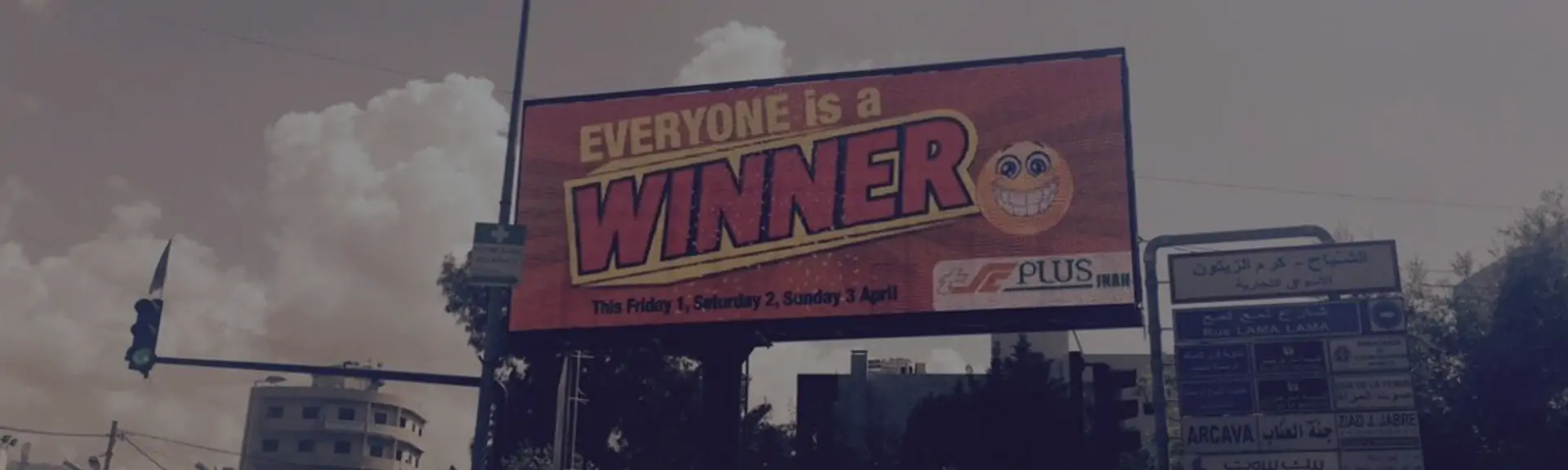

Outdoor fixed LED display is available in many pixel pitches for outdoor advertising, no matter it is in small or big screen. It can be used at building façades, monopoles, sports venues and so on.

Product Description

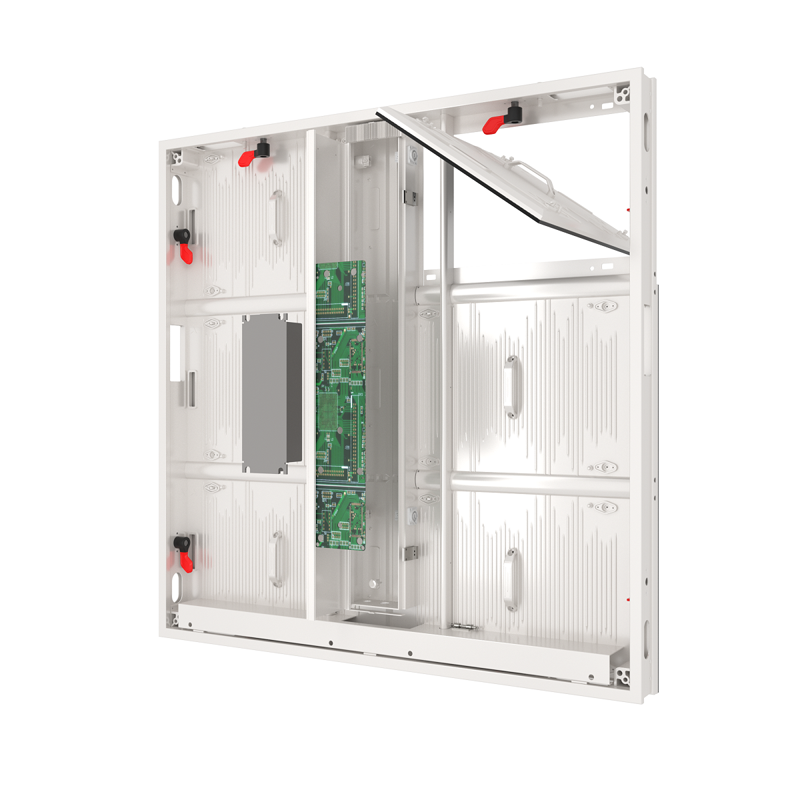

Fully enclosed modules 480x320mm, with Aluminum back housing for good cooling. Black and white colors as option for the modules back housing.

Aluminum profile frame, super slim and lightweight. The thickness is in 76mm and 27kg/m2 in weight.

Cabinets with locks on both vertical and horizontal. Modules with safety wires to the cabinet. Cables can be hided inside and can not be seen. Black and white colors as option for the cabinets.

Front service. The modules can be removed by an Allen key. All parts can be removed from front and rear.

Parameter

Item	Parameter
Model NO.	FL-OSC-P5.7	FL-OSC-P6.67	FL-OSC-P8	FL-OSC-P10
Pixel pitch	5.714mm	6.67mm	8mm	10mm
Pixel configuration	1R1G1B
LED type	SMD2727	SMD2727	SMD3535	SMD3535
Module size	480x320mm	480x320mm	480x320mm	480x320mm
Module resolution	84x56	72x48	60x40	48x32
Panel resolution	168x168	144x144	120x120	96x96
Cabinet	Aluminum profile 960x960x76mm
Density	30,625dots/㎡	22,500dots/㎡	15,625dots/㎡	10,000dots/㎡
Brightness	≥6,000 NIT	≥6,000 NIT	≥6,000 NIT	≥6,000 NIT
Scan method	1/7	1/6	1/5	1/2
Best view distance	≥6m	≥7m	≥8m	≥10m
Max. power consumption	600W / ㎡	580W / ㎡	560W / ㎡	600W / ㎡
Ave. power consumption	200W / m2	180W / m2	160W / m2	200W / m2
Weight per m2	27 KG /㎡
Grey scale	65,536
Colors	281 trillion
Refresh rate	3,840 Hz
View angle	Horizontal: 140°, Vertical: 140°
Protection level	IP66
