Indoor Transparent 1000x1000mm

Transparent LED Display

Transparent LED display is LED displays with high transparency for indoor and outdoor use, especially for window LED screen.

Product Description

Several brightness options

Brightness is optional in 500nits, 1000nits, and up to 4500nits according to the request of the light situation.

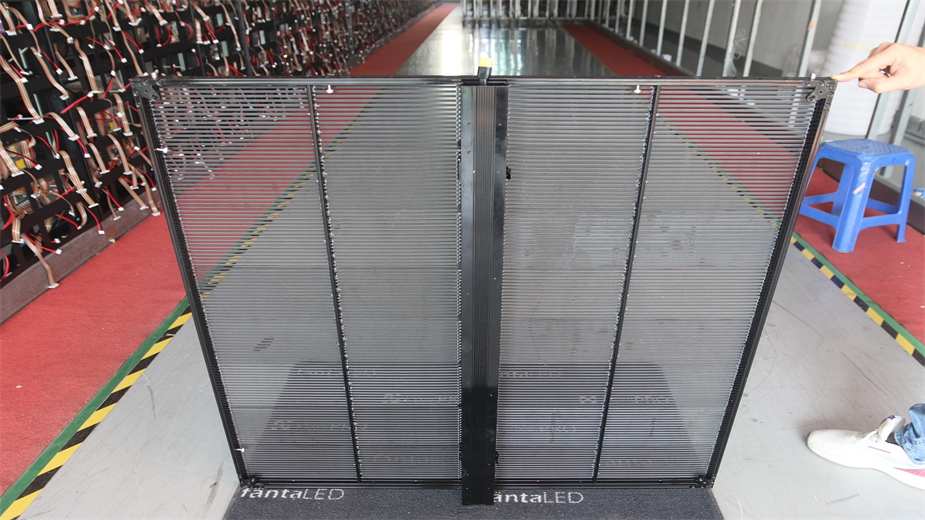

Super lightweight and slim

Super lightweight in 8.3kg/m2, which can save cost during shipping and installation. White and black color for the whole frame(including the shaders) are optional.

High transparency

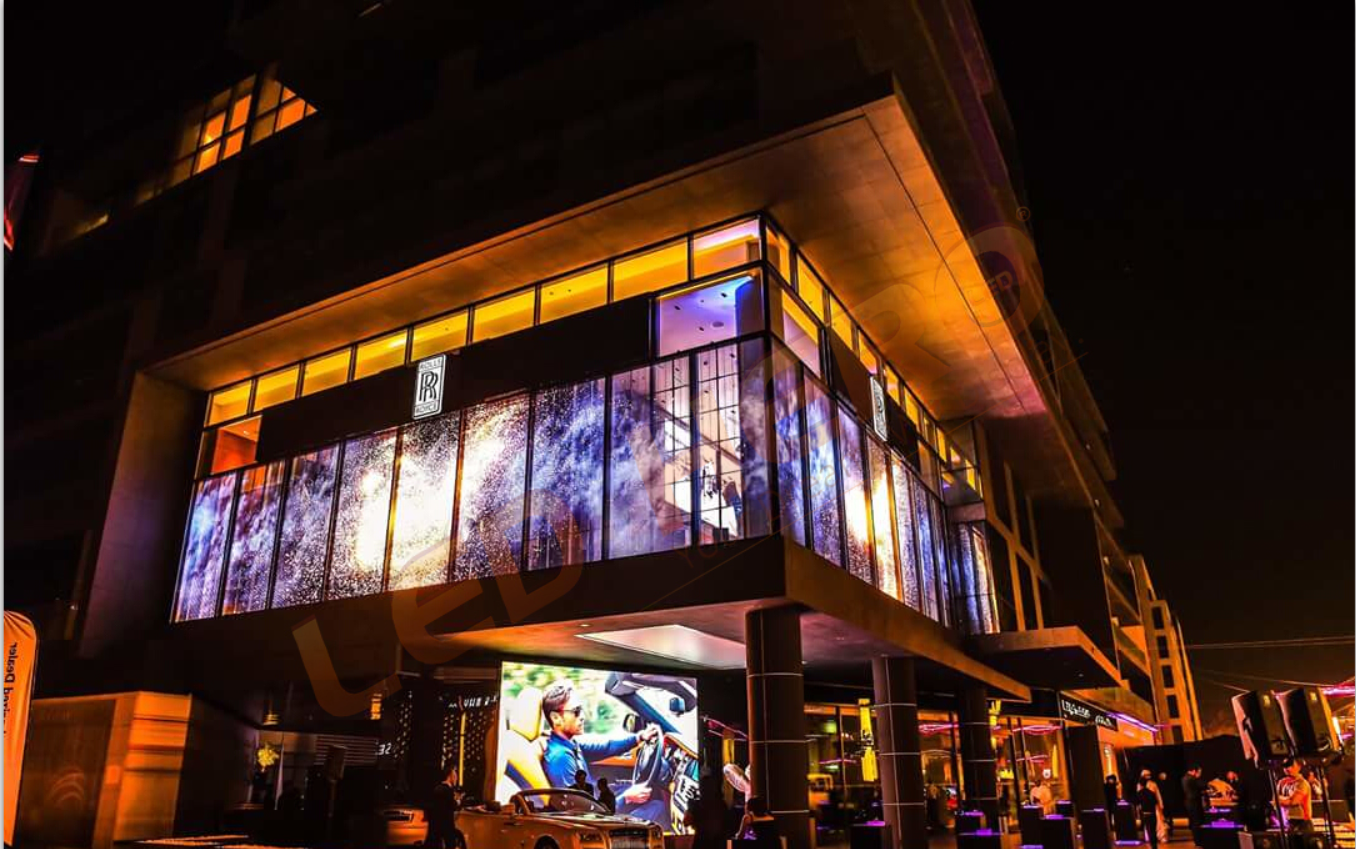

Transparency is more than 60%, ensuring light penetration for building window and glass of exclusive stores.

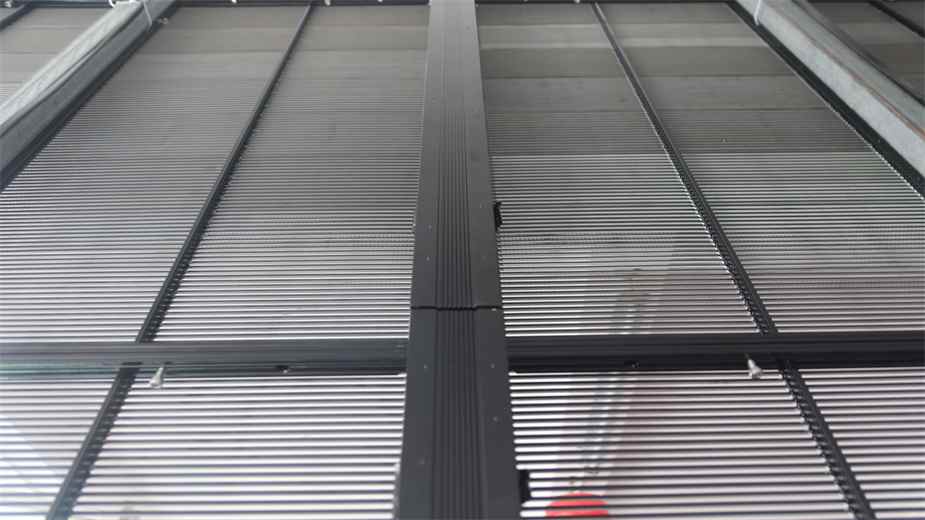

Hidden cabling

Cables go inside the power box and cannot be seen from back. It looks clear and neat.

Parameter

Item	Parameter
Model NO.	P3.91-7.8
Pixel pitch	W: 3.91mm H: 7.8mm
Pixel configuration	1R1G1B
LED type	SMD2121 Black	SMD1921	SMD1921
Module size	500mm x125mm
Module resolution	128x16
Panel resolution	256x128
Cabinet size (overall)	1000mm x 1000mm
Density	32,768 dots/㎡
Brightness	≥500 NITS	1500NITS	4000NITS
Scan method	1/16 scan	1/16 scan	1/8 scan
Best view distance	≥4m
Max. power consumption	450W / ㎡
Ave. power consumption	150 W / ㎡
Weight per ㎡	8.3 KG
Color depth	14 bit
Colors	281 trillion
Refresh rate	≥3,840Hz
Protection level	IP31, indoor use
